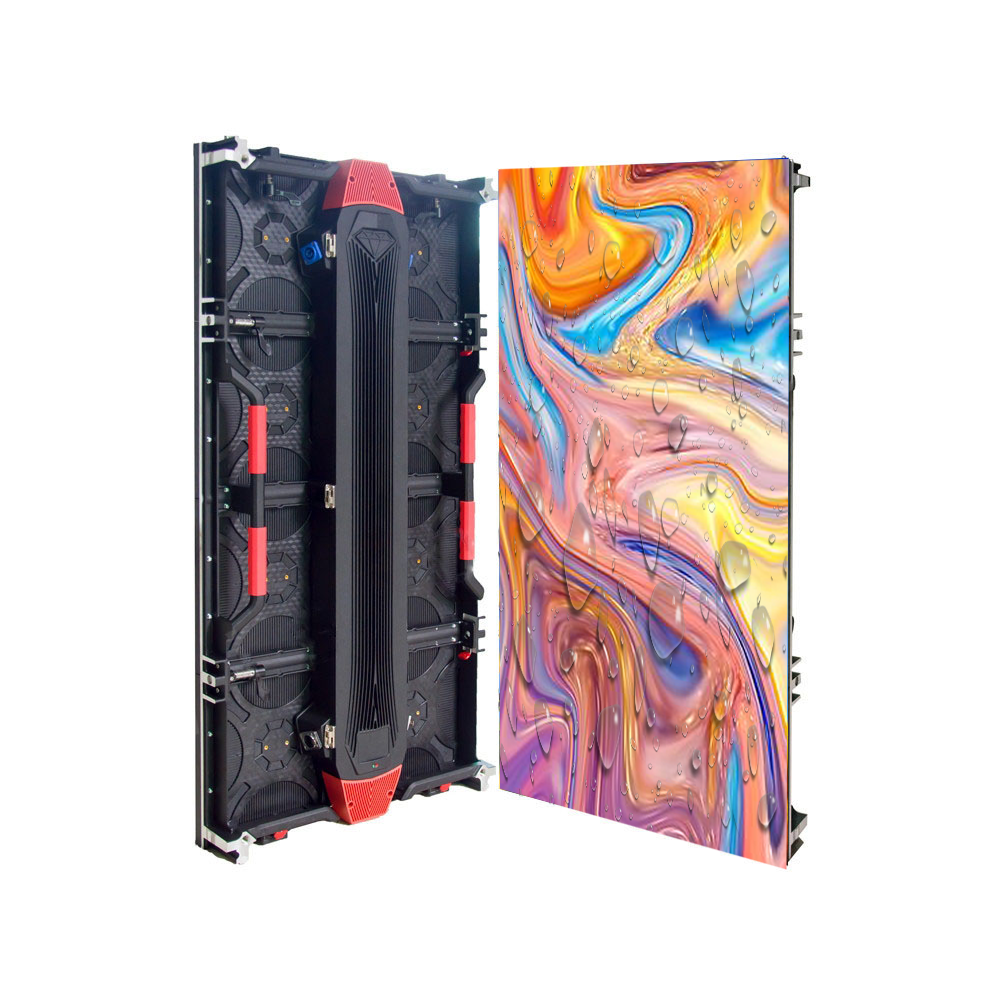

L Series

 Tip: click on the image to enlarge
Pixel Pitch :P3.9L  P 4.8L

Panel Dimensions:500mm x 500mm / 1000mm x 85mm

Module Size:250mm x 250mm

Panel Material:Die Casting Aluminum

PRODUCT FEATURES
>> Lightweight design

>>Fast installation

>> Easy maintenance

>>Flexible panels combination

>> Front and rear installation and maintenance





IP65 waterproof level can ensure stable operation of the screen even in extreme weather below：Typhoo、Rainstorm High Temperature Low Temperature 、

High Humidity 、Salt Spray

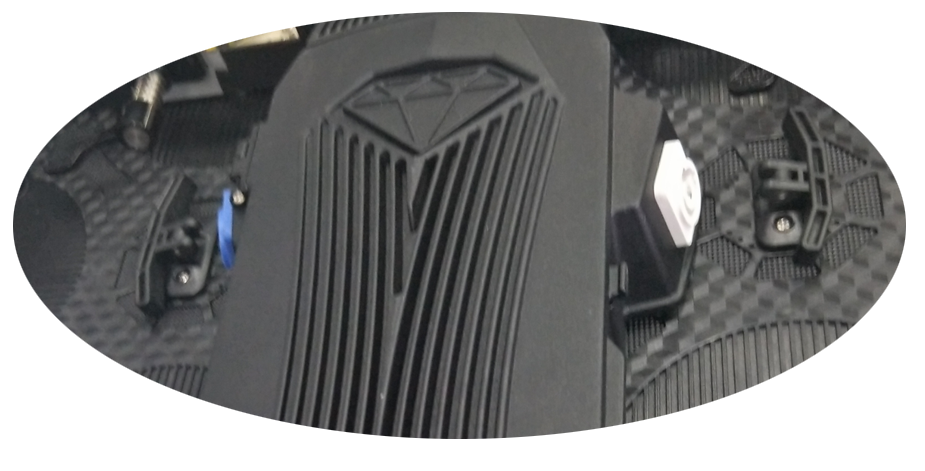

Receiving card External Signal Testing Button +working signal Indicate lamps +Power signal 3in1

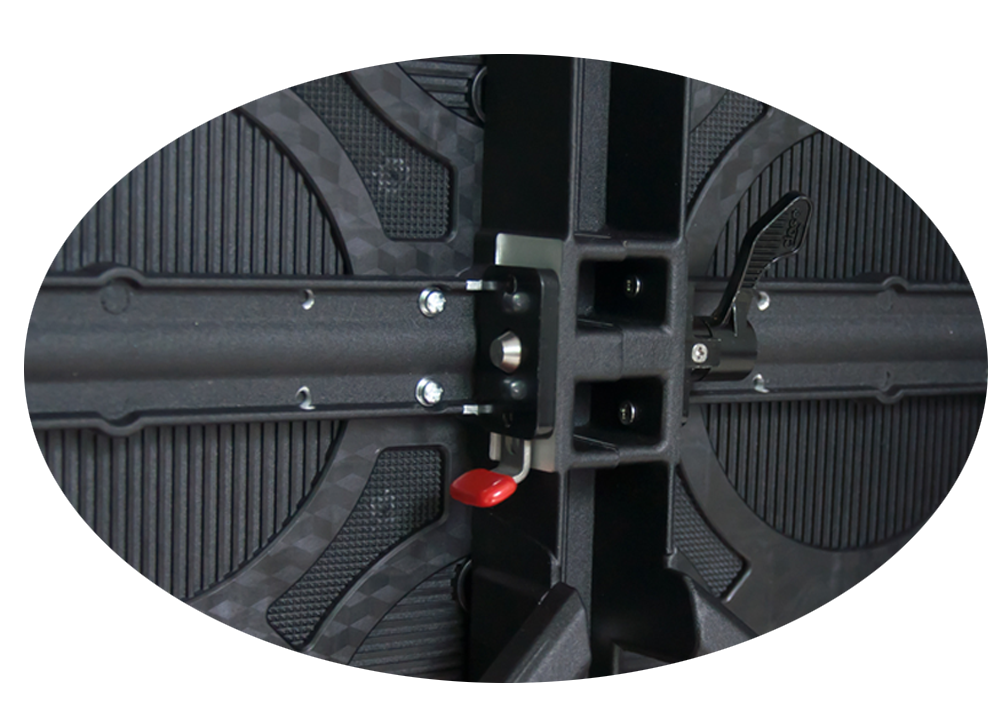

Strong  Strenthen Side +Top lockers





         America & Europe Standard  Power Connectors -Blue in /White Out /  Signal Cables US/Europe Standard Cat6 Rj45





SPECS

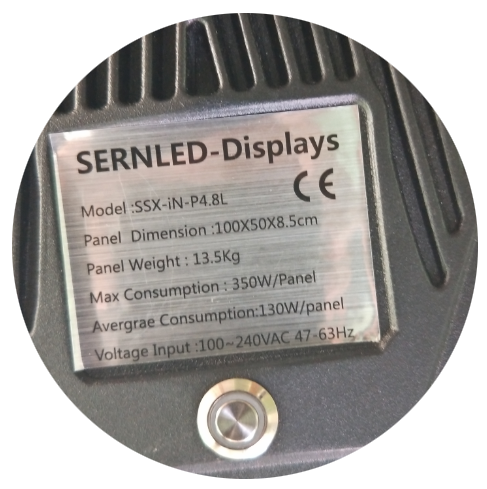

Modle   SSX-OTS-P3.9L SSX-OTS-P4.8L SSX-IN-P3.9L
Pixel Pitch mm 3.91mm 4.81mm 3.91mm
IP Rate  Outdoor(IP65) Indoor(IP32)
Brightness cd/m2 5000 5000 1200
LED Type   3IN1SMD1921 3IN1SMD2727 3IN1SMD2121
Viewing Angel degree:H 120° 120° 160°
degree:V 140° 140° 160°
Size(WxHxD) mm/LDM 250mmx250mm 250mmx250mm 250mmx250mm
mm/tile 500X500mm/1000x85mm 500X1000X85mm 500x1000x85mm
Weight MODULE 0.85kg 0.45kg
tile 8.0/13.5kg 13.5kg 13.5kg
sqm 32/27kg 27kg 27kg
Pixel Density pixel/tile 16384/32768 10816 32768
pixel/sqm 65536 43268 65536
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V50/60
Power Consumption (max/average)   W/tile 400/85 250 280
W/sqm 800/250 800 650
Max.Power Connection tile 10
Max.Date Connection tile 30
Color Process bit/color 14～16
Refresh Rate Hz 1920-3840Hz
Warranty ○year ○○
Max.Stacking(rental) tile 25
Max.Hanging(rental) tile 18
Curved degree(OPTL) -15～15
Certification                                        ROHS CE FCC

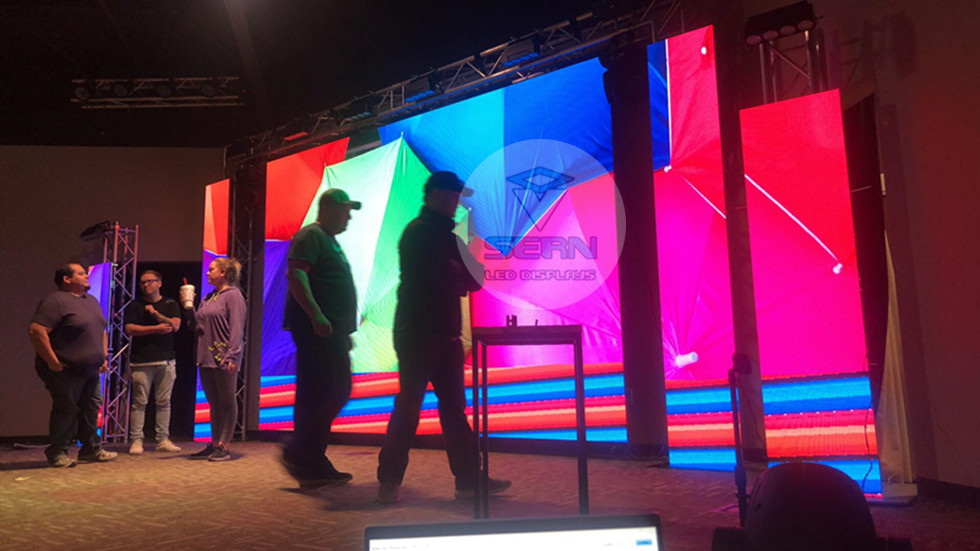

Rental Mobile Events LED Displays
