GOB Series

 Tip: click on the image to enlarge
Pixel Pitch: P1.8 P2.6  P2.9 P3.9

Panel Dimensions:500mm x 500mm

Refresh Rate:3840Hz +

Superb Visuals

The pixel density  very high HD LED Dance floor with outstanding image quality. True to content effects are created with 3840Hz high refresh rate
outstanding color processing and great contrast ratios.




High Refresh Rate Better Performance

 instant dynamic response to present vivid display performance whereas the product with low refresh rate resulted in low-quality display
performance and scanning lines when photos taken



GOB-Design -Anti-Water front side /Anti-UV/Anti-crash /Anti Sand LEDs protection  well

G2.6X with Cured Lock curved or straight Multi-usage one screen for All events

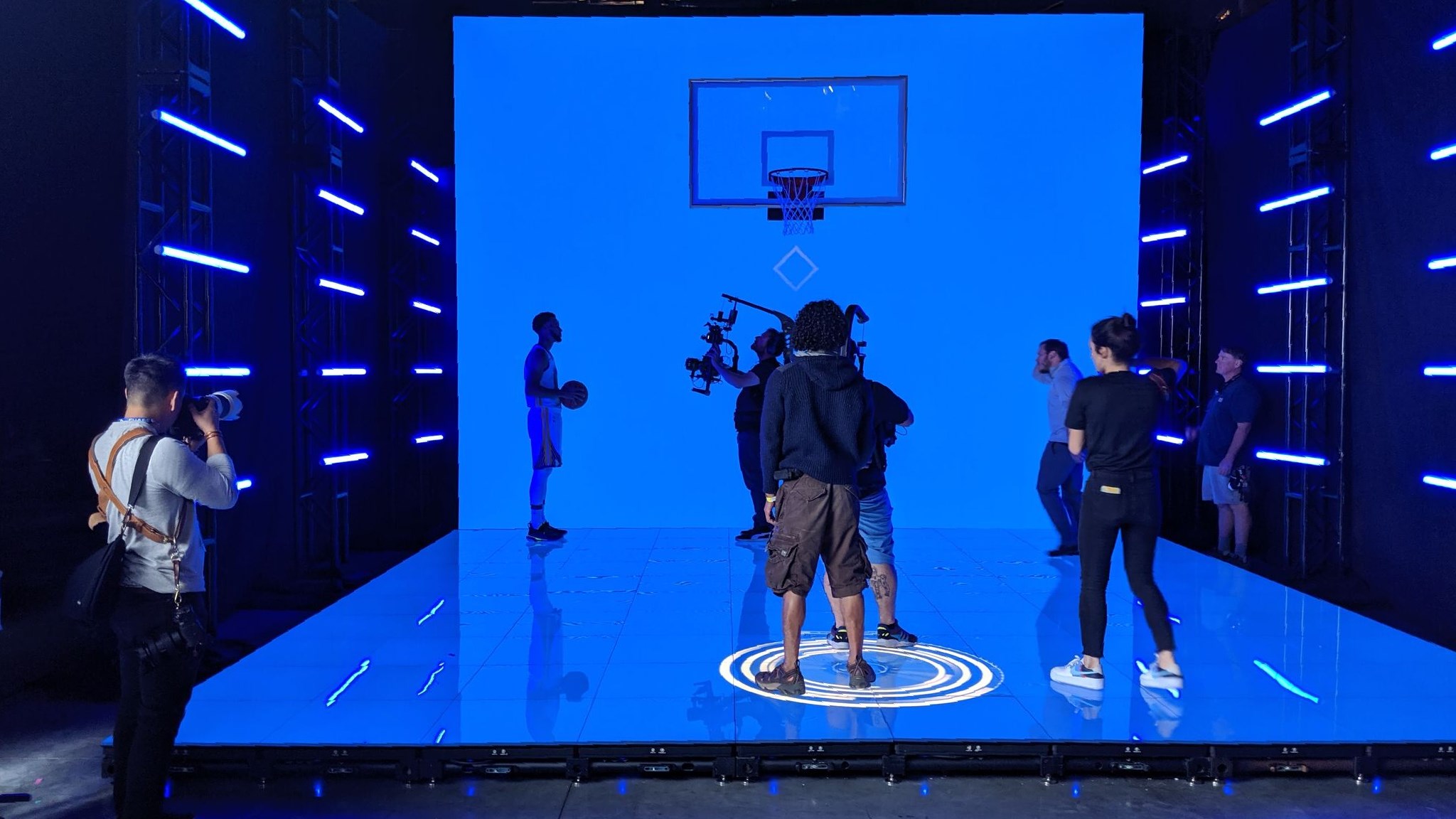

1.>LED Dance floor usage

   2.>Rental LED Display Mobile

3.>Fix LED TV Wall







Modle   SSX-IN-P1.875 SSX-IN-P2.604 SSX-IN-P2.97 SSX-IN-P3.9 SSX-OTS-P3.9
Pixel Pitch mm 1.875mm 2.604mm 2.97mm 3.91mm 3.91mm
IP Rate Indoor(IP32) Outdoor(IP65)
Brightness cd/m2 1100 1300 1200 1200 5000
LED Type   3IN1SMD1515 3IN1SMD2020 3IN1SMD1515/2020 3IN1SMD2121 3IN1SMD1921/2727
Viewing Angel degree:H 160° 160° 160° 140° 140°
degree:V 140° 160° 160° 140° 140°
Size(WxHxD) mm/LDM 250mmx250mm 250mmx250mm 250mmx250mm 250mmx250mm 250mmx250mm
mm/tile 500x500mm 500x500mm 1.64x1.64/500x500mm 500x500mm 500X500mm
Weight MODULE 0.45kg 0.45kg 0.45kg 0.65kg
tile 8kg 8kg 8kg 7.5kg 7.5kg
sqm 32kg 32kg 32kg 30kg 30kg
Pixel Density pixel/tile 71289 36866 28224 16384 16384
pixel/sqm 285156 147465 112896 65536 65536
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V  50/60
Power Consumption (max/average)   W/tile 165/65 165/65 165/65 200/75 200/65
W/sqm 650/250 650/250 650/250 800/250 800/240
Max.Power Connection tile 10
Max.Date Connection tile 30
Color Process bit/color 14～16
Refresh Rate Hz 3840Hz-4880Hz
Warranty ○year ○○
Max.Stacking(rental) tile 25
Max.Hanging(rental) tile 18
Curved degree(OPTL) -15～15
Certification                                    ROHS  CE    FCC

LED Dance FLoor GOB-P1.8Gx -480X480mm

It can used for LED Dance floor +Rental LED Display Both Intergrated
