SMX-Facade Media

 Tip: click on the image to enlarge
Pixel Pitch :P6*12 / P7.8*15.6   / P15.6 / P31.25

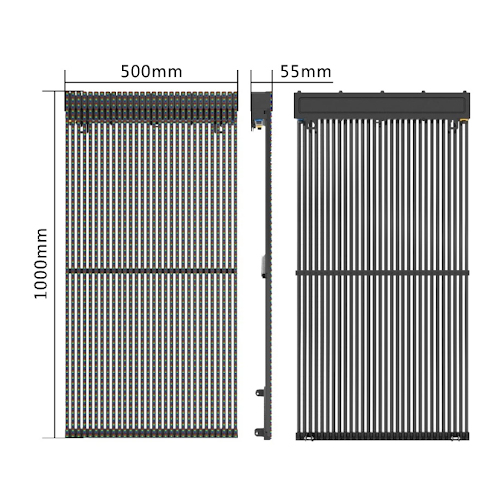

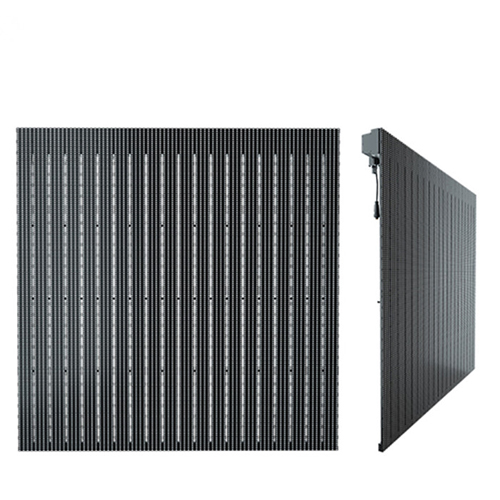

Panel Dimensions:500mm x 1000mm x 65mm   OR  1000X1000X65mm  OEM

Module Size:500mm x 125mm / 250mm x 1000mm

Refresh Rate:1920-3840 Hz

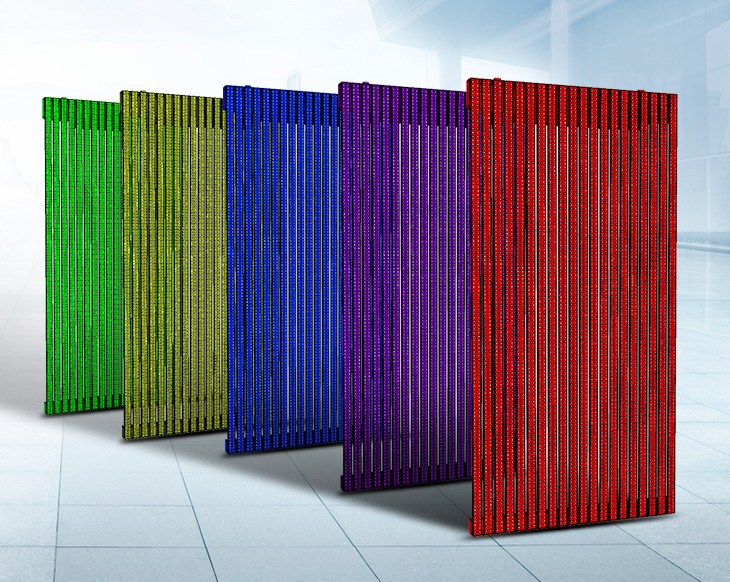

More Angles More Creativity


 Unlimited design flexibility of flat-concave and convex screen and creating a strong visual impact.

Offer 90° splicing screens support splicing with the curve screen to make creative design.

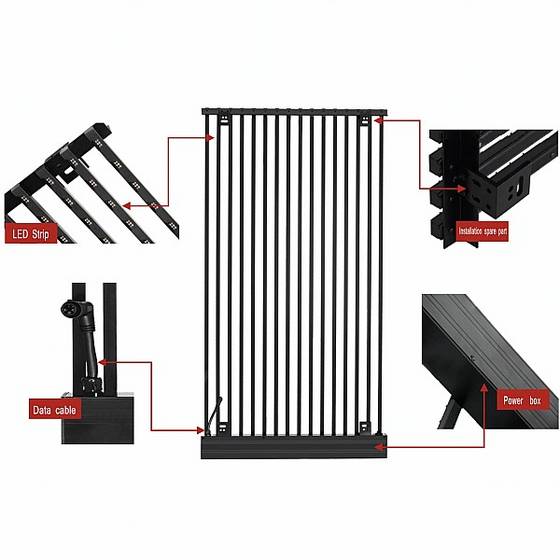

Details Of facade LED Mesh DIP/SMD3in1


High Transparency

40-70% transparency for mysterious staging effect Suitable for Glass video wall shops landscape.

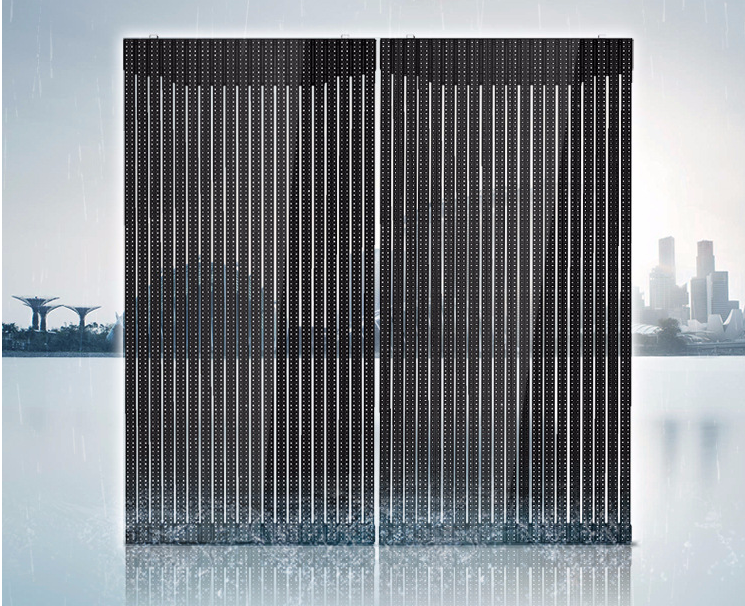

Working Condition :heavy rain /Snow weather working under -45 degree / 50degree




SMX-Fixed LED MESH Facade  SMX-P7.8/15.6S     SMX-P15.6/15.6S      SMX-P15.6/31.2S
Pixel Pitch (mm) 7.8/15.6 15.6 15.6/31.3
Pixel Density (dot/㎡ ) 8192 4096 2048
LED Type SMD3535 TOPLEDS SMD3535 TOPLEDS SMD3535 TOPLEDS
Module Size (W x H x D)mm 1000x15 1000x15 1000x15
Module Resolution (W x H) 128X1 64x1 64x1
Module Weight (Kg) 0.25 0.25 0.25
Transparency (%) 35% 57% 70%
Materials (Scan) Aluminium strip Aluminium strip Aluminium strip
Brightness (cd/㎡ ) ≥6500 ≥6000 ≥5500
Grey Scale (bits) 14 14 14
Refresh Rate (Hz) ≥1920/3840 ≥1920/3840 ≥1920/3840
Cabinet Size (W x H x D)mm 1000x500x65 1000x500x65 1000x1000x65
Cabinet Resolution (W x H) 128X64 64x64 32x64
Cabinet Weight (Kg/㎡ ) 14.5 14.5 14
Max Power Consumption (W/㎡ ) ≤800 ≤800 ≤400
Average Power consumption (W/㎡ ) 250 250 135
View Angle (Hº/Vº) 120/75 120/75 120/75
Mini View Distance (m) 10 15 20
Operating Use Temperature (℃) -10℃~40℃
Storage Use Temperature (℃) -20℃~50 ℃
Input Voltage (V) 110~240V Auto/220V
Input Power Frequency (Hz) 50Hz-60Hz
Failure Rate <1/100000
Signal Input Format SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc.
Life Time (hrs) 80000
IP Level (Front /Backside) IP67/ IP66
