NXL Series

 Tip: click on the image to enlarge
Pixel Pitch: P2.604NXL / P2.9NXL / P3.9NXL

Panel Dimensions:500mm x 500mm /1000mm x 80mm

Module Size:250mm x 250mm

Panel Material:Die Casting Aluminum + HUB design

Packaging Details:Wooden case / Flight case

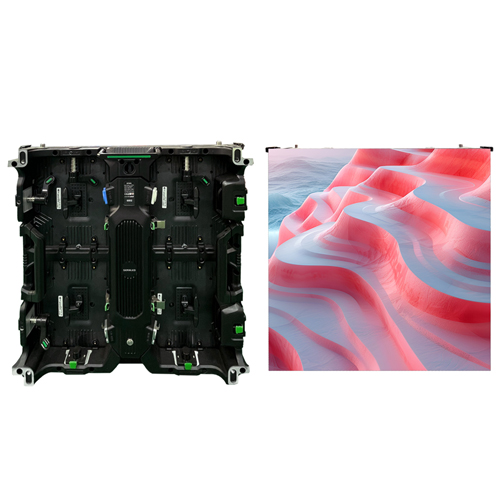

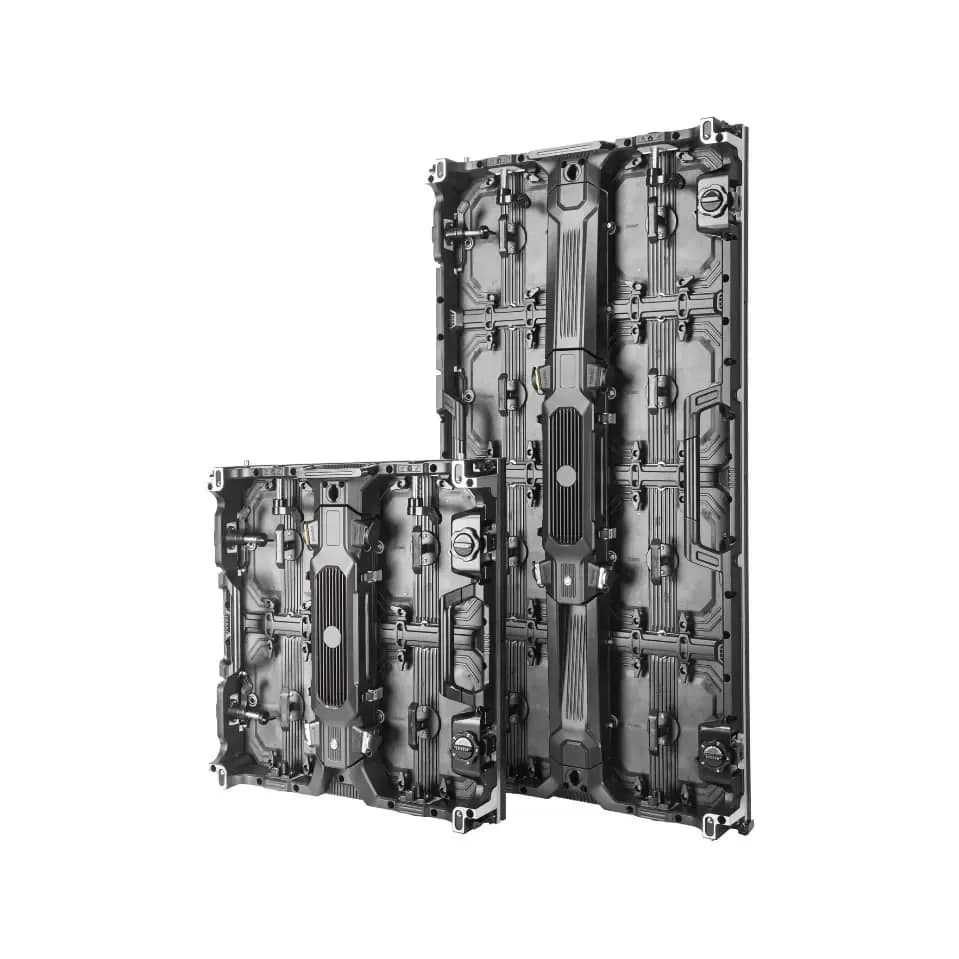

500x1000mm Rental LED Display NXL Series

NXL cabinet with ultra-thin design removable back coverhigh-precision curve lock for curved installation LED corner protector magnetic module high waterproof

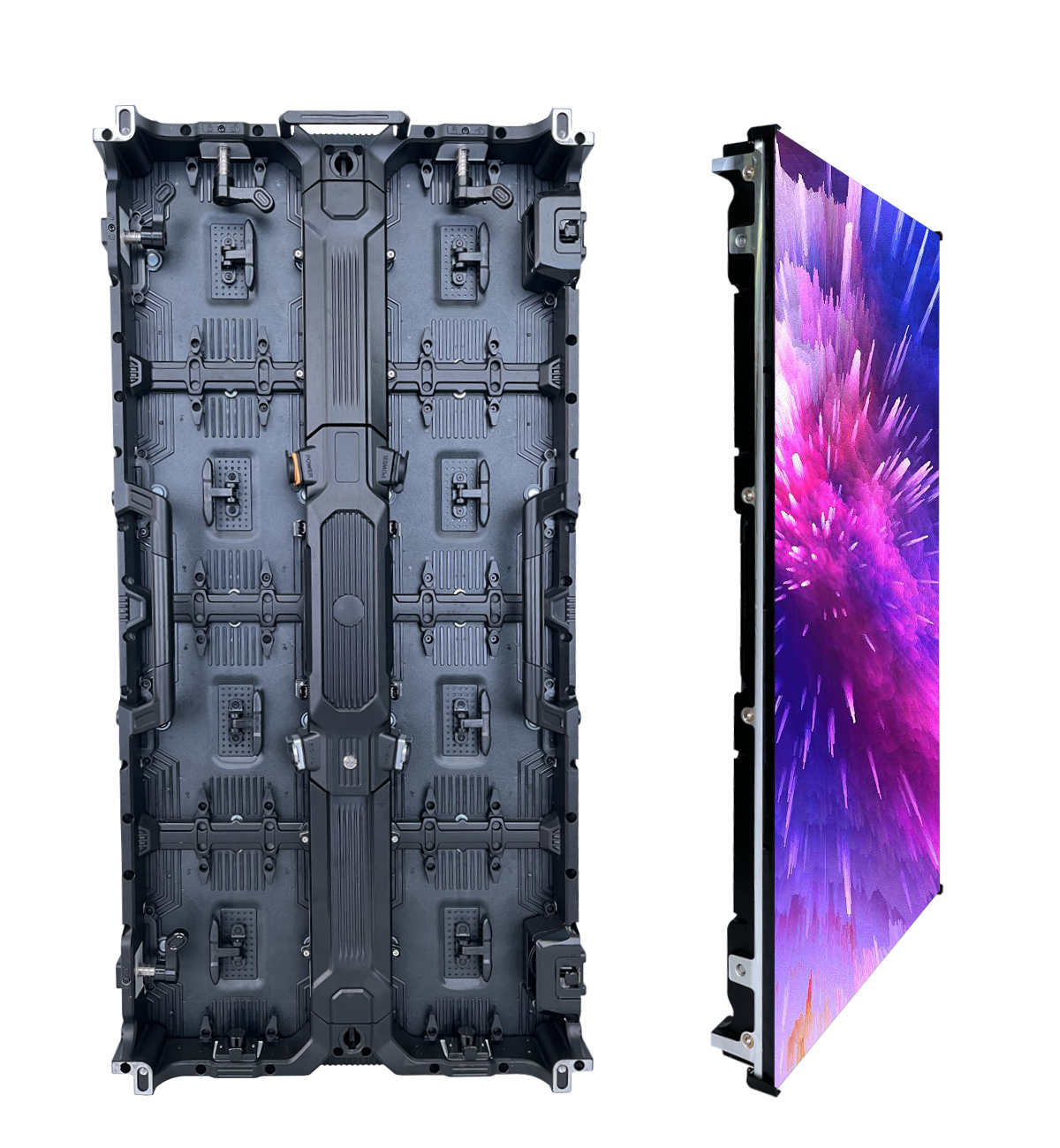

Slim design

500*1000mm standard cabinet size Ultra-Light die-casting aluminum.
ultra-thin thickness with 80mm. For easy transport and Portable;

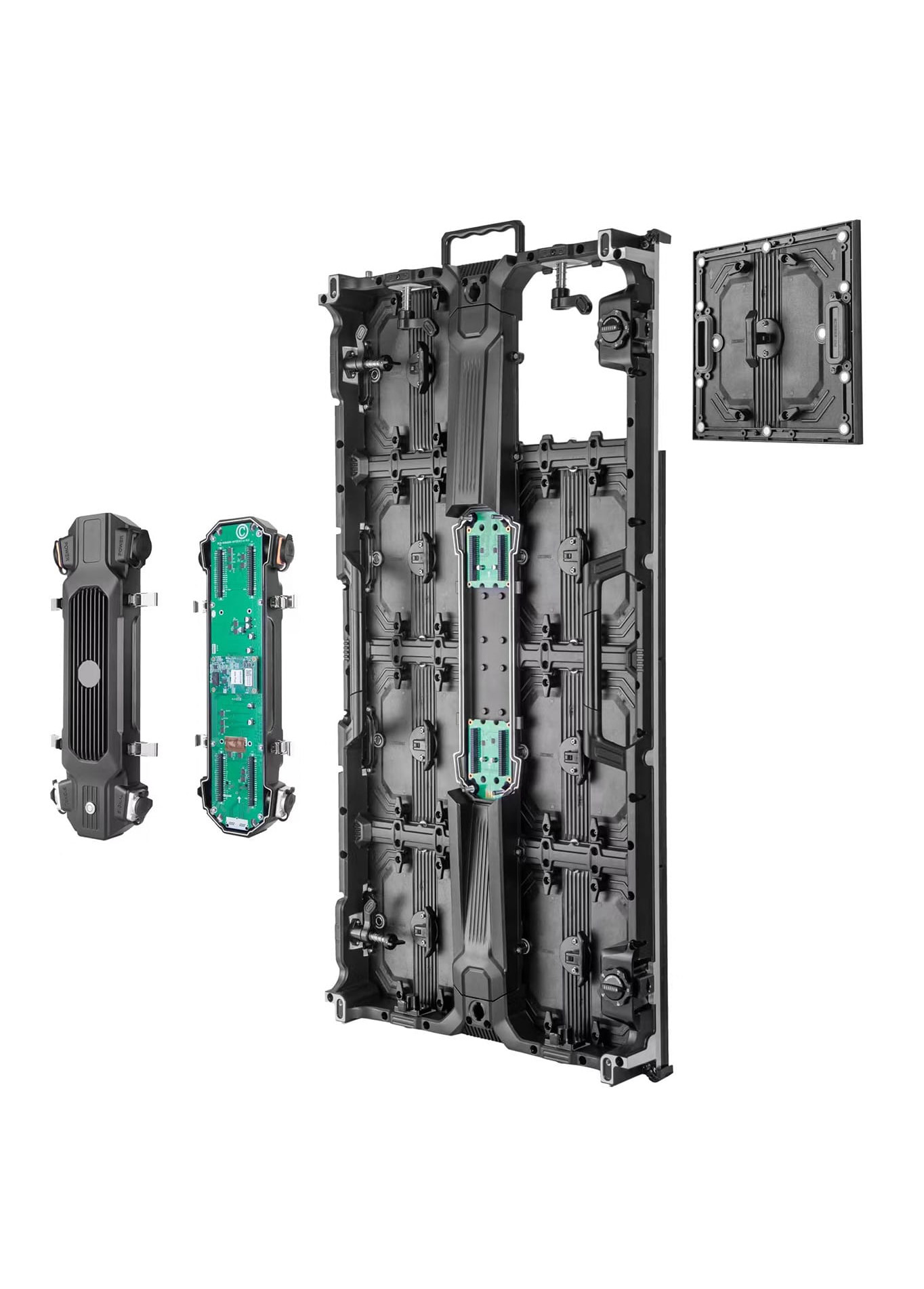

Perfect Cabinet Design

Excellent product came in all details from cabinet handle. cabinet fxied slot fast lock
magnet adsorption module module installation knob Power& signal connector detachable power boxing and more



Modle   SSX-IN-P2.604NXL SSX-IN-P2.97NXL SSX-IN-P3.9NXL SSX-OTS-P3.9NXL
Pixel Pitch mm 2.604mm 2.97mm 3.91mm 3.91mm
IP Rate   Indoor(IP32) Outdoor(IP65)
Brightness cd/m2 1300 1200 1200 5000
LED Type   3IN1SMD2020 3IN1SMD1515/2020 3IN1SMD2121 3IN1SMD1921/2727
Viewing Angel degree:H 160° 160° 140° 140°
degree:V 160° 160° 140° 140°
Size(WxHxD) mm/LDM 250mmx250mm 250mmx250mm 250mmx250mm 250mmx250mm
mm/tile 500x500mm 1.64x1.64/500x500mm 500x500mm 500X500mm
Weight MODULE 0.45kg 0.45kg 0.65kg
tile 8kg 8kg 7.5kg 7.5kg
sqm 32kg 32kg 30kg 30kg
Pixel Density pixel/tile 36866 28224 16384 16384
pixel/sqm 147465 112896 65536 65536
Use Temperature Operating(℃） -10℃～40℃
Storage(℃） -20℃～50℃
Life Time hrs 80000
Operating Power VACHz 100-240V  50/60
Power Consumption (max/average)   W/tile 165/65 165/65 200/75 200/65
W/sqm 650/250 650/250 800/250 800/240
Max.Power Connection tile 10
Max.Date Connection tile 30
Color Process bit/color 14～16
Refresh Rate Hz 3840Hz-7680Hz
Warranty ○year ○○
Max.Stacking(rental) tile 25
Max.Hanging(rental) tile 18
Curved degree(OPTL) -15～15
Certification                                    ROHS  CE    FCC
