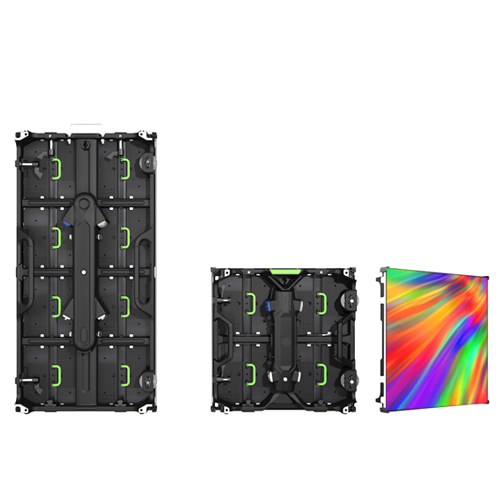

Pixel Pitch :P2.84 Indoor and Outdoor
Panel Dimensions:500x500mmx82mm / 500x1000mmx82mm
Module Size :250x250mm

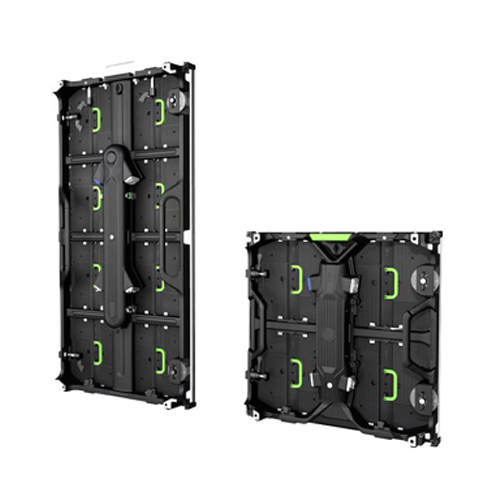

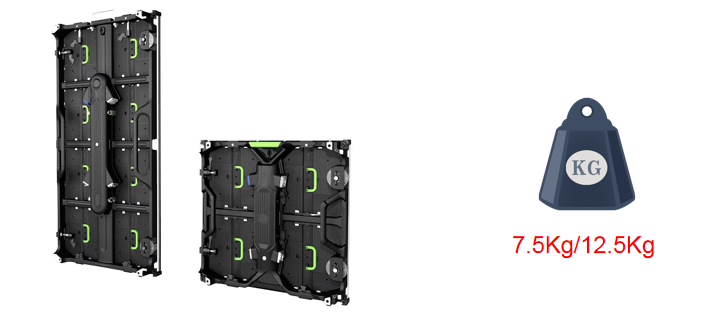

Lightweight design
Ultra-thin & light cabinets with positioning pins bring fast assembly even by a single worker

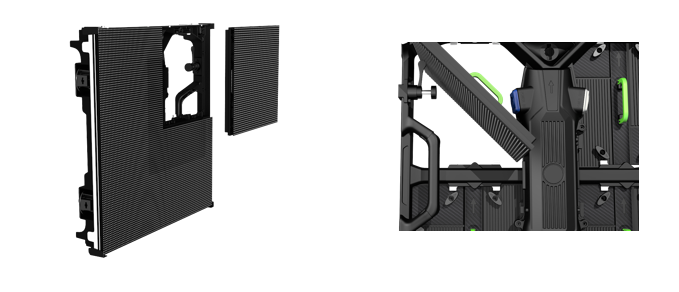

Easy install and maintenance
Front maintenance no maintenance path needed each module is equipped with magnet
cylinders which connect the module onto the panel structure.

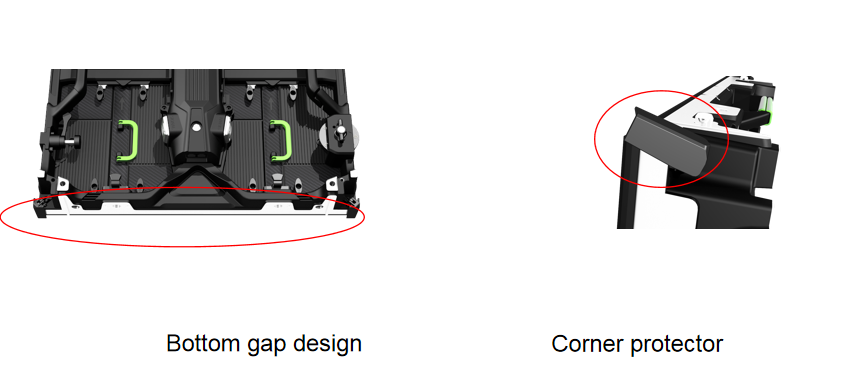

High strength corner protector
High strength corner protector
a.Corner protectors prevent the lamps from damage during transportation and installation
b.Bottom gap design of cabinet can effectively protect the bottom led and masks during transportation and installation

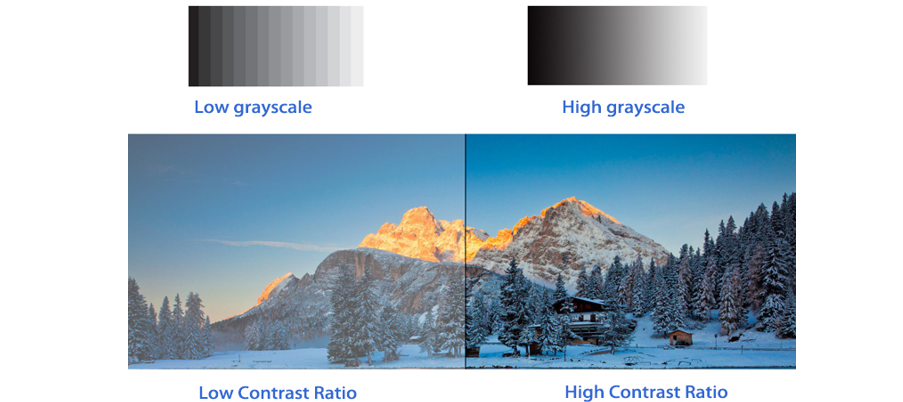

Best image quality
a.Fine pitch P1.9 and P2.5 /P2.6 playing vivid picture.
b.High refresh rate is up to 3840HZThe screendisplay has no lags and flicker.It is responsesmooth and stable.
| Pixel Pitch | mm | RPT2.84mm | |
| IP Rate | Indoor | Outdoor | |
| Brightness | cd/m2 | 800CD | 4500CD |
| LED Type | 3IN1SMD2121 | 3IN1SMD1921 | |
| Viewing Angel | degree:H | 160° | |
| degree:V | 140° | ||
| Size(WxHxD) | mm/LDM | 250mmx250mm | |
| mm/tile | 500x500mmx82mm | 500x1000mmx82mm | |
| Weight | MODULE | 0.35kg | |
| tile | 7.5kg | 12.5kg | |
| sqm | 30kg | 25kg | |
| Pixel Density | pixel/tile |
30985dot/m2
|
|
| pixel/sqm |
112896dot/m2
|
||
| Use Temperature | Operating(℃） | -10℃～40℃ | |
| Storage(℃） | -20℃～50℃ | ||
| Life Time | hrs | 80000 | |
| Operating Power | VACHz | 100-240V 50/60 | |
| Power Consumption (max/average) | W/tile | 160/50 | |
| W/sqm | 480/170 | ||
| Max.Power Connection | tile | 10 | |
| Max.Date Connection | tile | 30 | |
| Color Process | bit/color | 14～16 | |
| Refresh Rate | Hz | 3840Hz-4880Hz | |
| Warranty | ○year | ○○ | |
| Max.Stacking(rental) | tile | 25 | |
| Max.Hanging(rental) | tile | 18 | |
| Curved | degree(OPTL) | -15～15 | |
| Certification |
ROHS CE FCC |
||
