SL Series

 Tip: click on the image to enlarge
Pixel Pitch: P2.9SL;P3.9SL;P4.8SL

Panel Dimensions:500mm*500mm/500mm*1000mm

Module Size:250mm*250mm

Panel Material:Die Casting Aluminum

Panel Weight: 7.8/12.5Kg

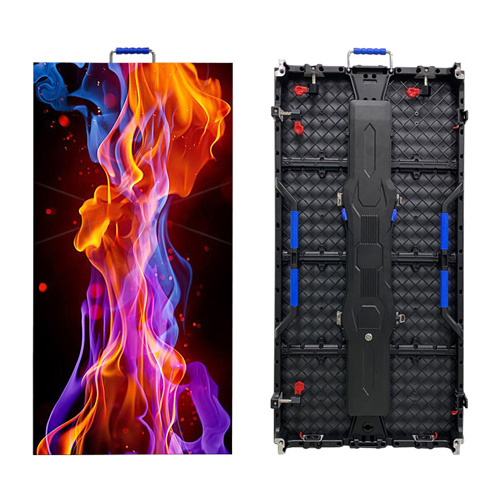

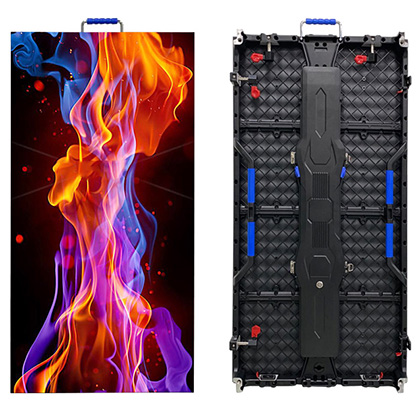

500x1000 Professional Rental LED Display SL Series

SL Series  has two quick lock devices on the left and right sides which can ensure faster assembly speed and better screen flatness.
It also has anti-collision feet at the bottom of the cabinet to protect the edge of the LED module.

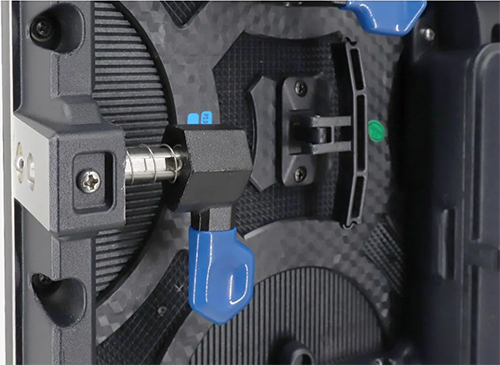

Quick Install

SL series LED screen Two Fast Locks on Left and Right SideEnsure faster assembly and better screen flatness.

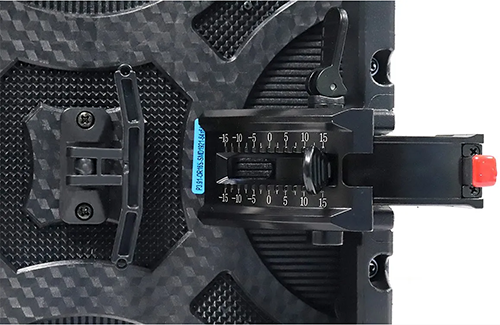

High Precision Curve Lock

High Precision Curve Lock design is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control more accurate easy to use and quickly adjust curve degree.



Corner Protector for LED

SL series LED sign has four corner protectors in each corner to prevent LED to be damaged
more security for transport installation operation assemble & disassemble foldable design and easy to use.



Wide Viewing Angle

Viewing angle is up to 140° vertical and horizontal providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.


Rental & Fixed   SSX-IN-P2.6SL SSX-IN-P2.9SL SSX-IN/OTS-P3.9SL
Pixel Pitch (mm) 2.604 2.976 3.91
Pixel Density (dot/㎡ ) 147456 112896 65536
LED Type SMD1515 SMD1515 SMD2121/SMD1921
Module Size (W x H x D)mm 250x250x20 250x250x20 250x250x20
Module Resolution (W x H) 192X192 84x84 64x64
Module Weight (Kg) 0.35 0.35 0.35/0.45
Power Consumption per Module (W) 20 20 20
Driver Mode (Scan) 1/16 1/16 1/16
Brightness (cd/㎡ ) ≥1000 ≥1200 ≥1200/5000
Grey Scale (bits) 16 16 16
Refresh Rate (Hz) ≥1920/3840 ≥1920/3840 ≥1920/3840
Cabinet Size (W x H x D)mm 500x500x85 500x500/1000x85 500x500/1000x85
Cabinet Resolution (W x H) 192x192 168x168/336 128x128/256
Cabinet Weight (Kg/㎡ ) 25 25/27 26
Max Power Consumption (W/㎡ ) ≤650 ≤650 ≤650/800
Average Power consumption (W/㎡ ) 200 200 200/300
View Angle (Hº/Vº) 140/140 140/140 140/120
Mini View Distance (m) 2.5 3 3.5
Operating Use Temperature (℃) -10℃~40℃
Storage Use Temperature (℃) -20℃~50 ℃
Input Voltage (V) 220V/110~240V
Input Power Frequency (Hz) 50Hz-60Hz
Failure Rate <1/80000
Signal Input Format SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc.
Life Time (hrs) 80000
IP Level (Indoor/Outdoor)       IP40                                                                             IP65
