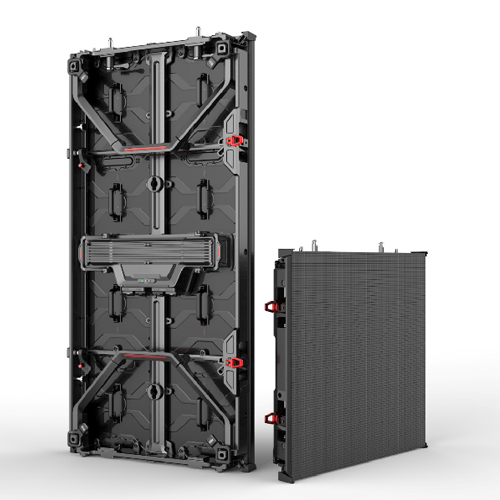

SPR Series

 Tip: click on the image to enlarge
HD Resolution : P1.9 / P2.6 / P2.9 / P3.9 /P4.8 / P5.9

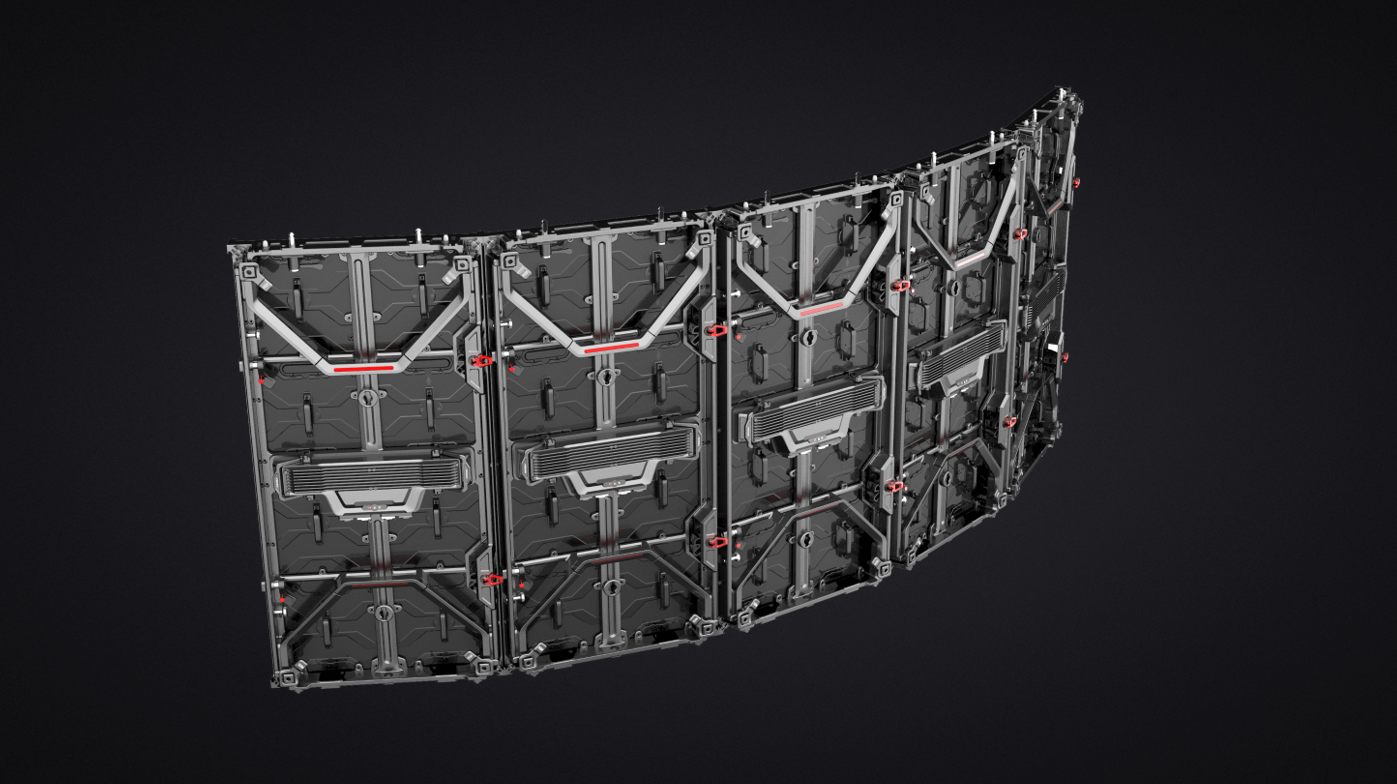

Curve application :Knob type arc lock

Flash function

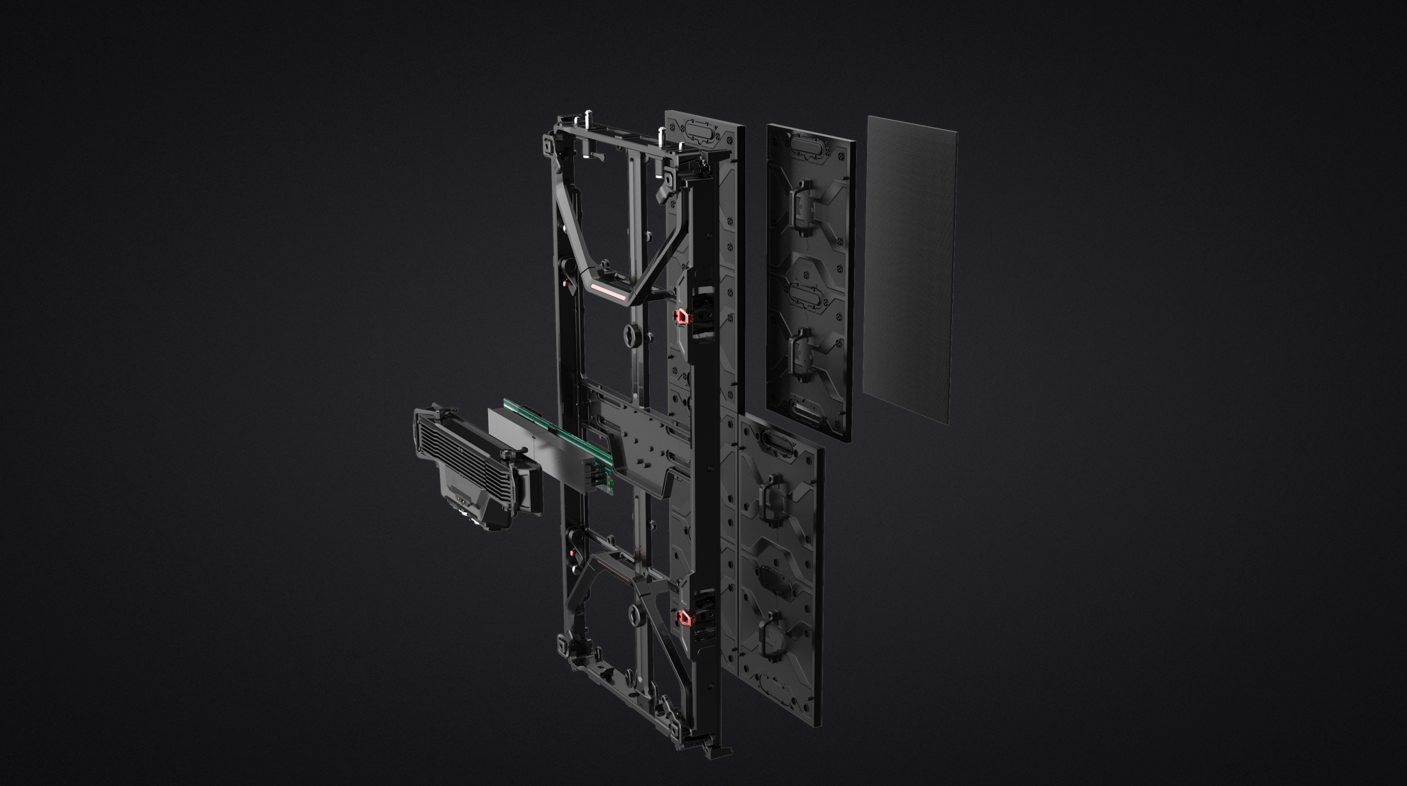

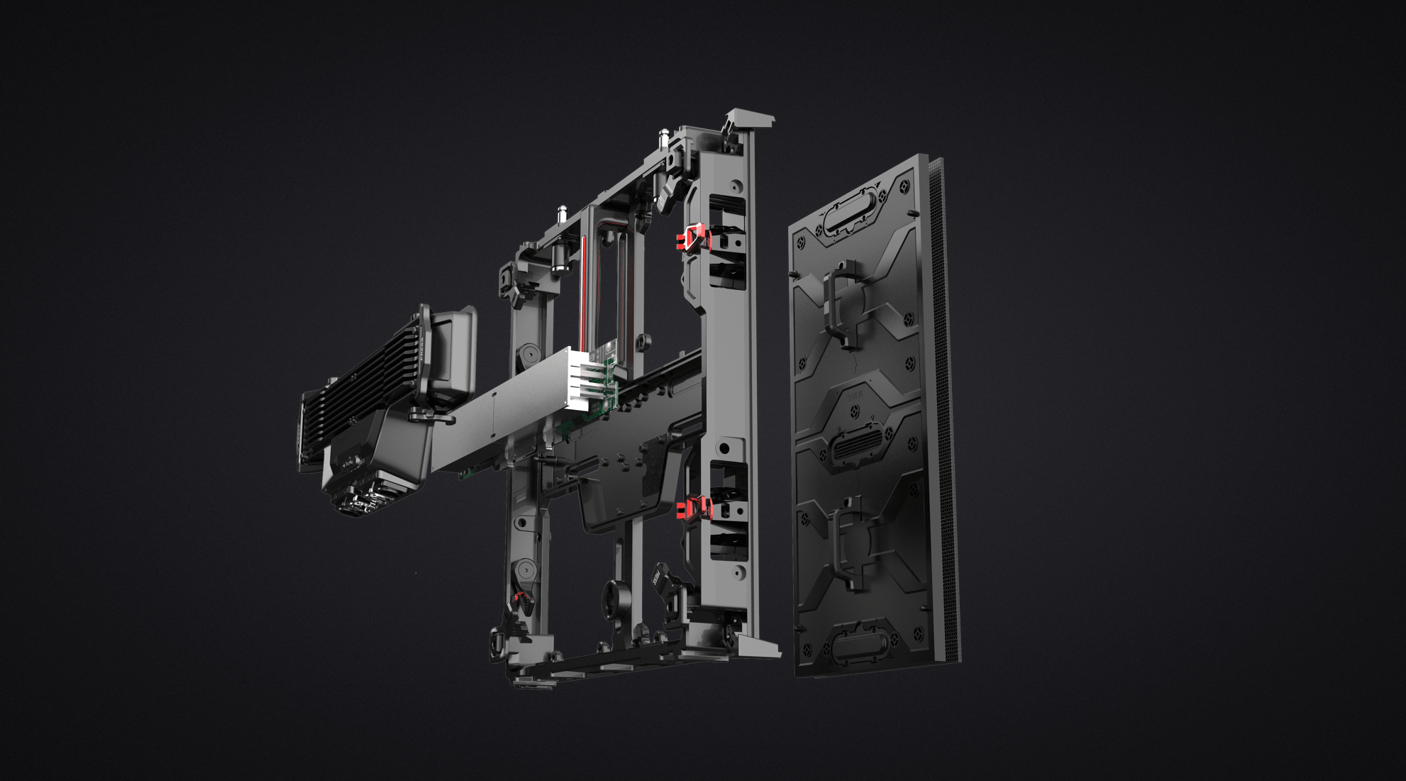

Front and back maintenance

Independent power box

Poster function

Semi automatic Angle Protecter



Rental & Fixed  LOBPRO SSX-IN-P2.6PR SSX-IN-P2.9PR SSX-IN/OTS-P3.9PR
Pixel Pitch (mm) 2.604 2.976 3.91
Pixel Density (dot/㎡ ) 147456 112896 65536
LED Type SMD1515 SMD1515 SMD2121/SMD1921
Module Size (W x H x D)mm 250x250x20 250x250x20 250x250x20
Module Resolution (W x H) 192X192 84x84 64x64
Module Weight (Kg) 0.35 0.35 0.35/0.45
Power Consumption per Module (W) 20 20 20
Driver Mode (Scan) 1/16 1/16 1/16
Brightness (cd/㎡ ) ≥1000 ≥1200 ≥1200/5000
Grey Scale (bits) 16 16 16
Refresh Rate (Hz) ≥3840 ≥3840 ≥3840

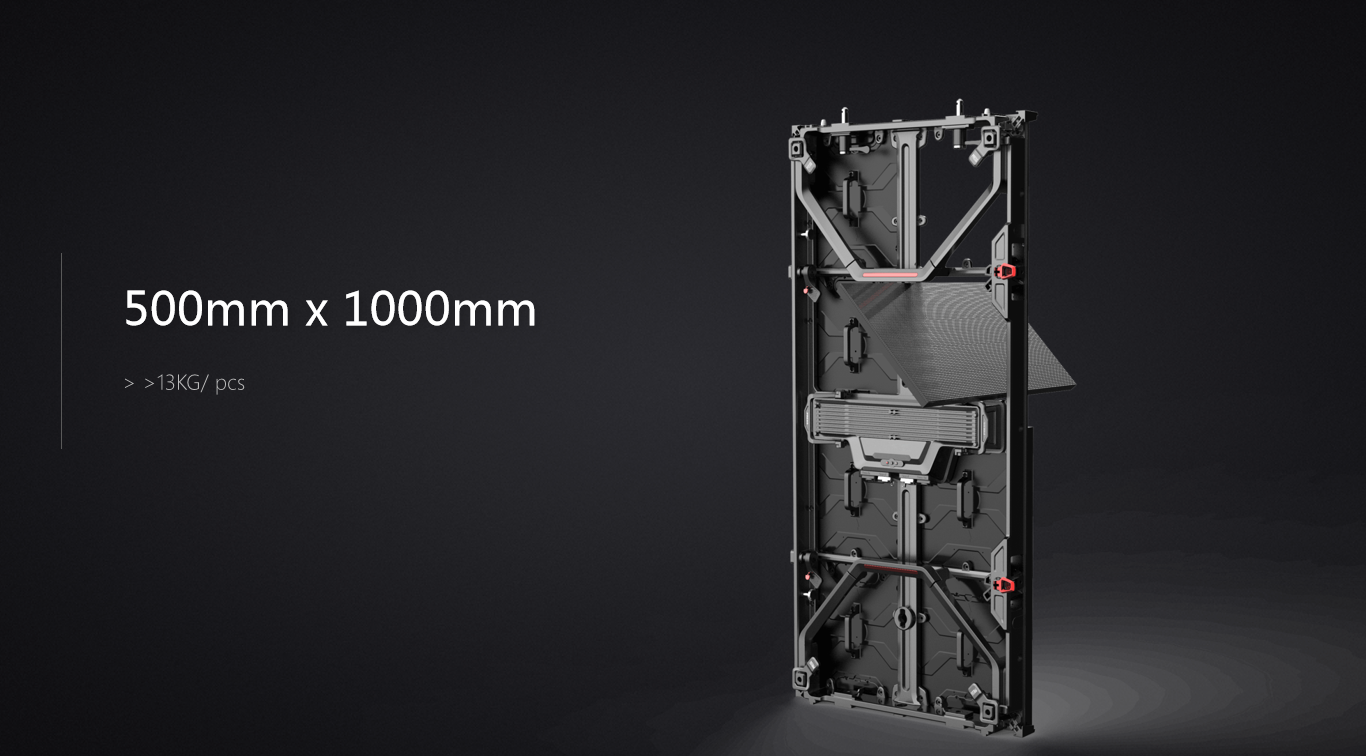

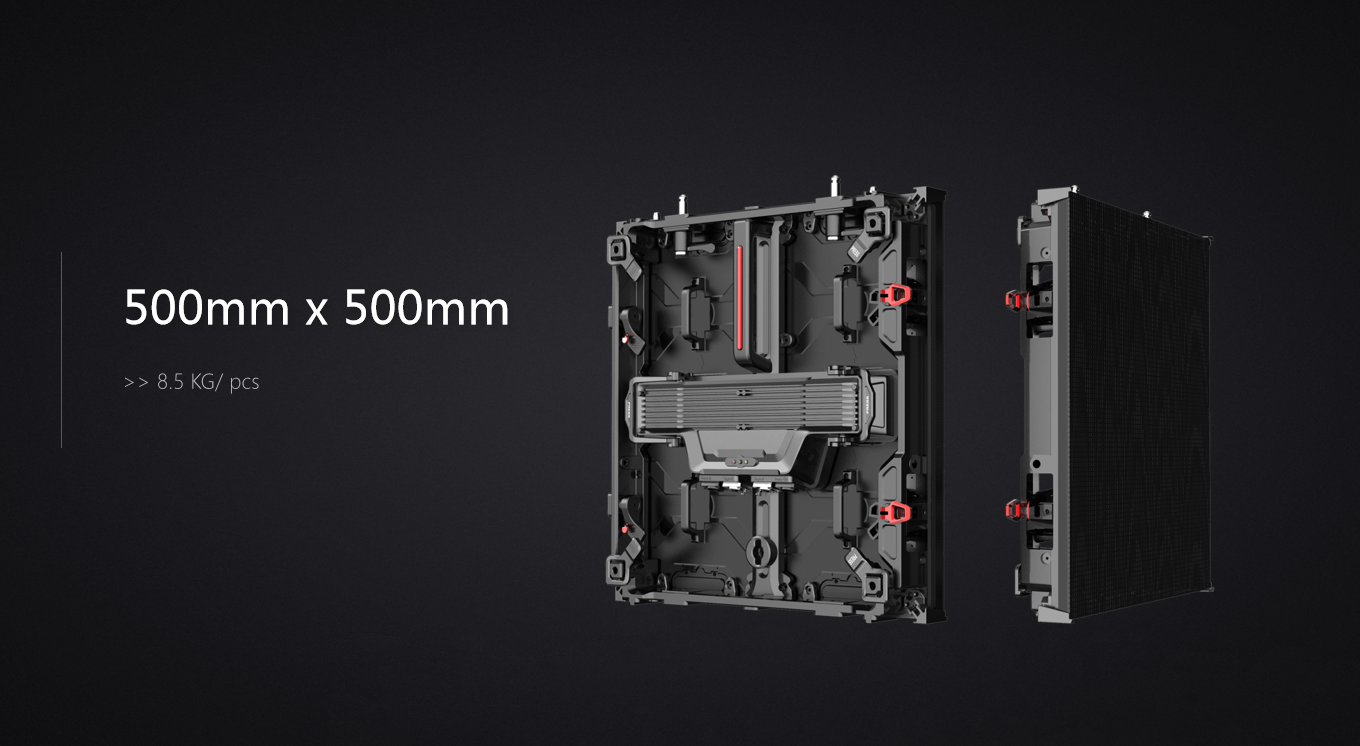

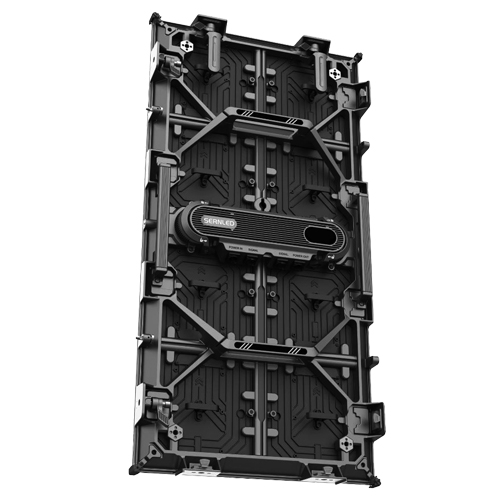

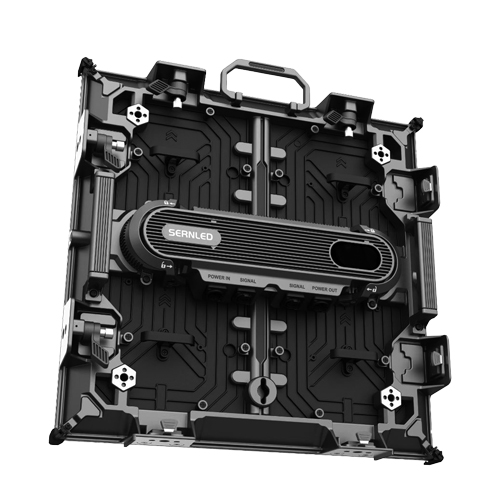

Cabinet Size (W x H x D)mm 500x500x85 500x500/1000x85 500x500/1000x85
Cabinet Resolution (W x H) 192x192 168x168/336 128x128/256
Cabinet Weight (Kg/㎡ ) 25 25/27 26
Max Power Consumption (W/㎡ ) ≤650 ≤650 ≤650/800
Average Power consumption (W/㎡ ) 200 200 200/300
View Angle (Hº/Vº) 140/140 140/140 140/120
Mini View Distance (m) 2.5 3 3.5
Operating Use Temperature (℃) -10℃~40℃
Storage Use Temperature (℃) -20℃~50 ℃
Input Voltage (V) 220V/110~240V
Input Power Frequency (Hz) 50Hz-60Hz
Failure Rate <1/80000
Signal Input Format SDI RGBHV YUVYC Composite HDMIDVI SD/HD-SDI etc.
Life Time (hrs) 80000
IP Level (Indoor/Outdoor)       IP40                                                             IP65
